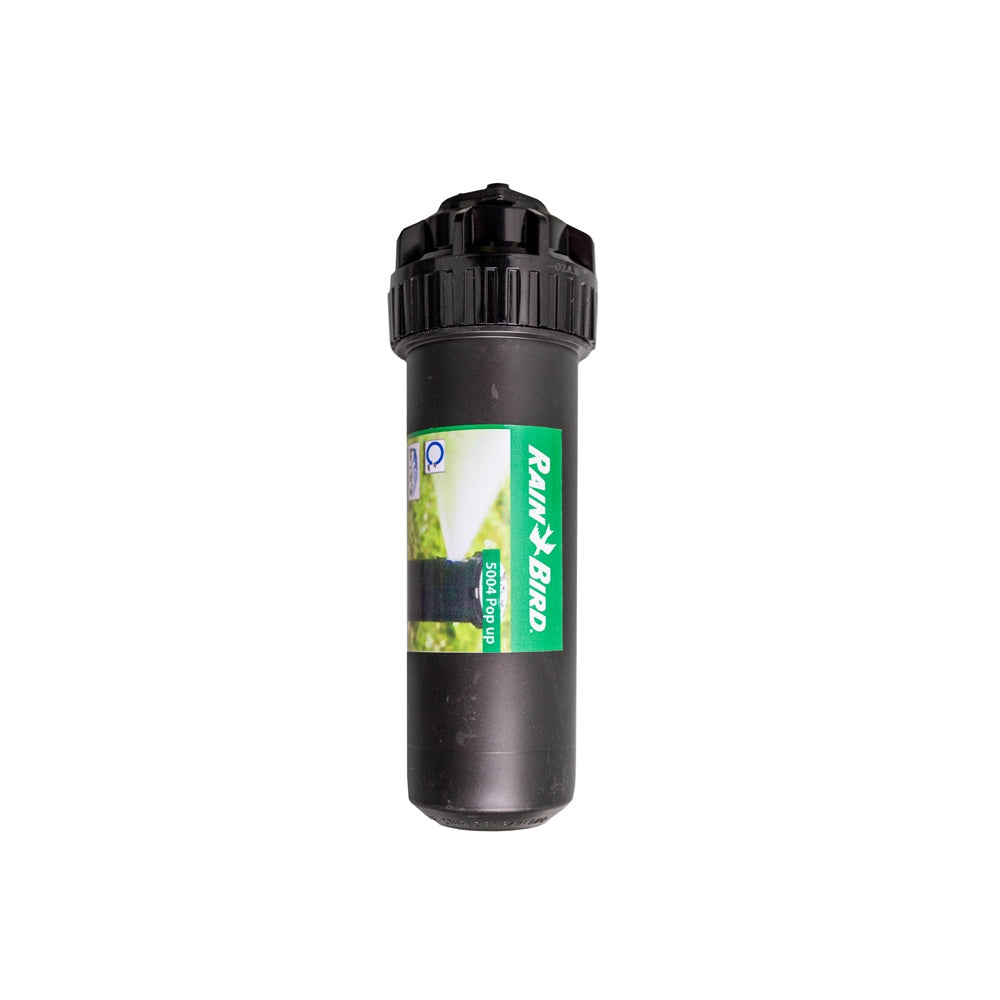

Rain Bird 5004 Pop-Up Rotor Sprinkler – Adjustable 40°–360°

Rain Bird 5004 Pop-Up Rotor Sprinkler – Adjustable 40°–360°

Description:
The Rain Bird 5004 is a professional-grade pop-up rotor sprinkler designed for efficient and uniform irrigation. With an adjustable spray arc from 40° to 360°, it ensures precise coverage for lawns, garden beds, and landscaping projects, making it ideal for medium to large turf areas.

Key Features:
Model: 5004
Pop-Up Height: 100 mm
Overall Body Height: 185 mm
Exposed Surface Diameter: 41 mm
Inlet Size: ¾" NPT female threaded bottom
Operating Pressure: 1.7 to 4.5 bar (25 to 65 psi)
Flow Rate: 4.2 to 36.6 L/min (0.73 to 9.63 GPM)
Coverage Radius: 7.6 to 15.2 meters (25 to 50 feet)
Precipitation Rate: 5 to 26 mm/h (0.20 to 1.01 inches per hour)
Arc Adjustment: Adjustable from 40° to 360° (reversing full-circle)
Radius Adjustment: Up to 25% reduction via radius screw
Nozzle Technology: Rain Curtain™ for uniform distribution and wind resistance
SAM Option: Seal-A-Matic check valve available to prevent low-head drainage

Applications:
Ideal for medium to large residential lawns, garden beds, and landscaping projects
Suitable for areas requiring a 100 mm pop-up height
