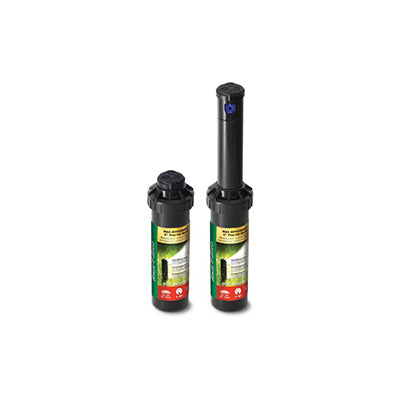

Rain Bird 3504 Pop-Up Sprinkler – 100 mm Height

Rain Bird 3504 Pop-Up Sprinkler – 100 mm Height

Description:
The Rain Bird 3504 is a versatile pop-up gear-drive rotor sprinkler designed for efficient and uniform irrigation. With a 100 mm pop-up height, it provides reliable coverage for lawns, garden beds, and landscaping projects.

Key Features:
Model: 3504
Pop-Up Height: 100 mm
Inlet Size: ½" FNPT (female threaded bottom)
Coverage Radius: 4.6 to 10.7 meters (15 to 35 feet)
Adjustable Arc: 40° to 360° (part/full-circle)
Flow Rate: 2.0 to 17.4 liters per minute (0.54 to 4.6 GPM)
Operating Pressure: 1.7 to 3.8 bar (25 to 55 psi)
Precipitation Rate: 9 to 21 mm/h (0.37 to 0.83 inches per hour)
Nozzle Trajectory: 25°

Features:
Attachable nozzle tree with six Rain Curtain™ nozzles
Radius reduction screw for up to 35% radius adjustment
Quick Check Arc/Fast Forward for easy arc adjustment
Dual-action positive stop wiper seal for reliable pop-up and retraction
SAM (Seal-A-Matic) check valve option available to prevent low-head drainage

Applications:
Ideal for residential lawns, garden beds, and landscaping projects
Suitable for areas requiring a 100 mm pop-up height
